Distributed tracing

Where does a slow request actually spend its time? A request takes four seconds, but your web app looks normal and the database is quiet. A single request can authenticate against one service, load data from an internal API, enqueue a background job, and call a third-party payment API before the response comes back. When it slows down or fails, the cause often sits in a different service than the one that first showed the symptom. Distributed tracing lets you follow that one request across those boundaries. AppSignal groups the work from every service into one trace, so you can see the full path before you start comparing timestamps across apps.

​

What is distributed tracing?

When each service reports on its own, you can see that a web action is slow, but not that an inventory service farther down the call chain caused it. In AppSignal, those services may live in separate applications or namespaces, so following one request means opening each one and lining up the timestamps. Distributed tracing keeps those services connected. As a request moves from one service to the next, each service tags its work with the same trace identifier and records which span called it. AppSignal uses that data to reassemble the full path of the request across every service that took part. With a distributed trace, you can:

• Follow one request from its entry point through every service it reached.
• See where the time went, even when the slow part runs in a different service or application.
• Find which service an error started in, not just where it surfaced.

​

Spans, traces, and services

AppSignal shows a distributed trace as three building blocks.

• Span: a single unit of work, such as an incoming HTTP request, a database query, a call to another service, or a block of code you instrument yourself. A span has a name, a duration, and attributes, and it records the span that started it. Spans are the smallest thing a trace is made of.

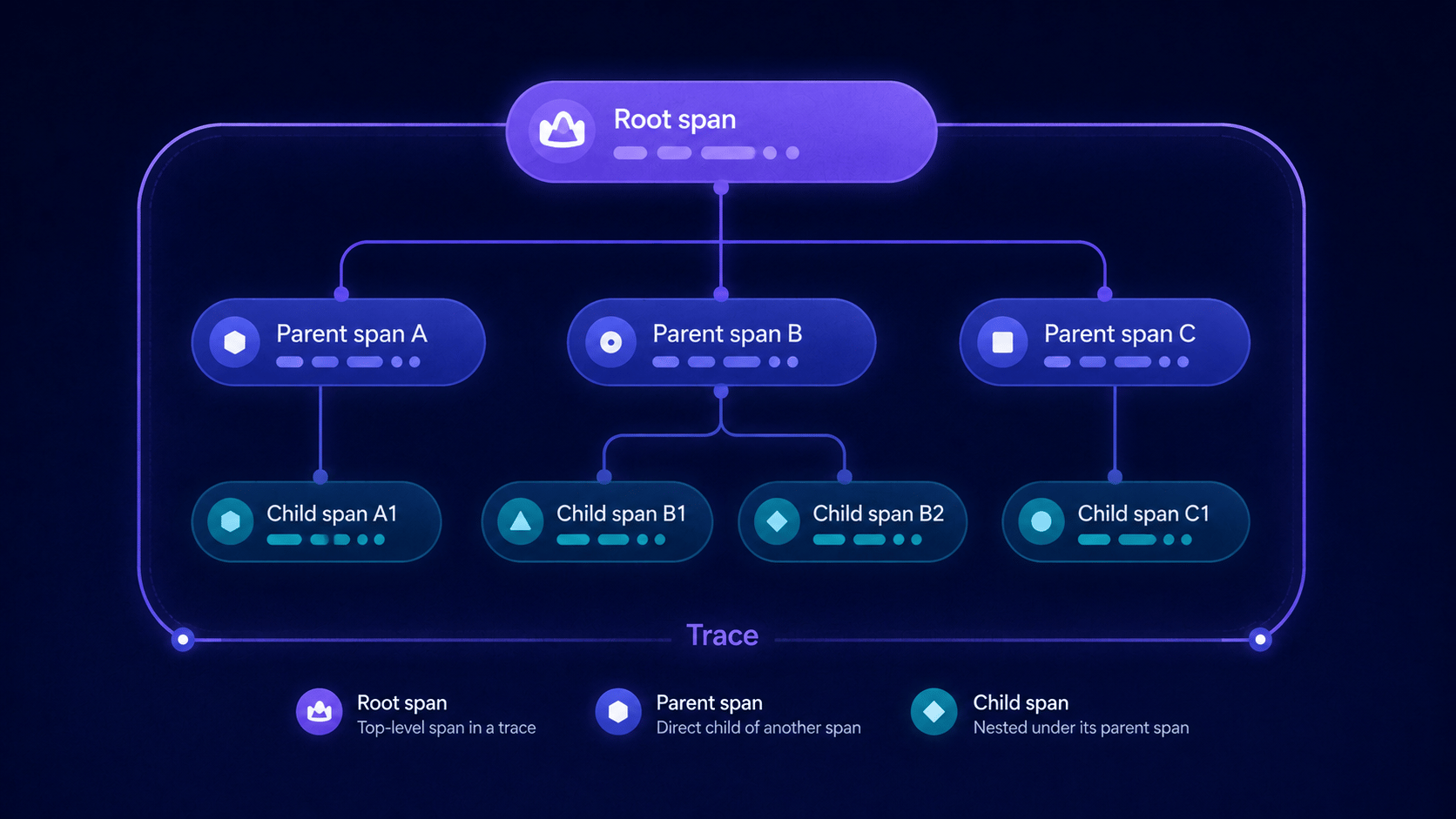

• Trace: all the spans that belong to one end-to-end operation. Because each span knows its parent, the spans in a trace form a tree that describes the request from start to finish.
• Service: a named component that takes part in a trace, such as a web app, a background worker, or an internal API. You name a service with the service_name option (or the APPSIGNAL_SERVICE_NAME environment variable), and AppSignal uses that name to tell services apart in a trace. A single trace usually crosses several services, and those services can report to different AppSignal applications.

Within AppSignal, a trace is a kind of sample: the detailed record of one request, stored so you can open it and read it span by span. AppSignal derives your performance metrics, such as response time and throughput, from these traces, so a performance chart and a single trace are two views of the same data.

​

Availability and setup

Before you investigate a request across services, each application needs to report to a hosted collector and identify itself with a distinct service name. Distributed tracing is available through AppSignal integrations for Python, Ruby, and PHP. Elixir and Node.js are not supported yet, but any OpenTelemetry-instrumented application can still report trace data to a hosted collector. What you need to configure depends on how your integration sends data to AppSignal. Python and Ruby can report either through their bundled agent or through a collector, so you need to enable collector mode. PHP and custom OpenTelemetry setups already report through a collector, so there is nothing extra to switch on for distributed tracing.

• Python: set the collector_endpoint option to your hosted collector’s URL rather than a self-hosted one. See collector configuration for Python.
• Ruby: set the collector_endpoint option to your hosted collector’s URL rather than a self-hosted one. Collector mode arrived in AppSignal for Ruby 5.0 and needs the appsignal-opentelemetry gem alongside it, on Ruby 3.1 or newer. See collector configuration for Ruby for the versions to install, and distributed tracing for Ruby for the libraries that carry the trace for you.
• PHP: no extra distributed tracing setting to enable. The PHP package already reports through a collector, so distributed tracing works once your app reports to AppSignal.
• A custom OpenTelemetry setup: no AppSignal-specific distributed tracing setting to enable. Exporting to a hosted collector is already how these setups report, so traces connect on their own.

Set a service name for each application as well. Python, Ruby, and PHP take it as the service_name option or the APPSIGNAL_SERVICE_NAME environment variable; a custom OpenTelemetry setup sets the service.name resource attribute. Set it explicitly for every service. Without it, AppSignal cannot distinguish the services in a trace reliably, and custom OpenTelemetry expects the service.name resource attribute to be present. Distributed tracing is built on OpenTelemetry, so it is not limited to the integrations above. Any OpenTelemetry-instrumented application can report distributed tracing data to a hosted collector. You can do this through an AppSignal integration such as the PHP package, or a custom OpenTelemetry SDK setup. Read more in the Python collector configuration, Ruby collector configuration, PHP configuration, and OpenTelemetry service name option docs.

​

How does it work in AppSignal?

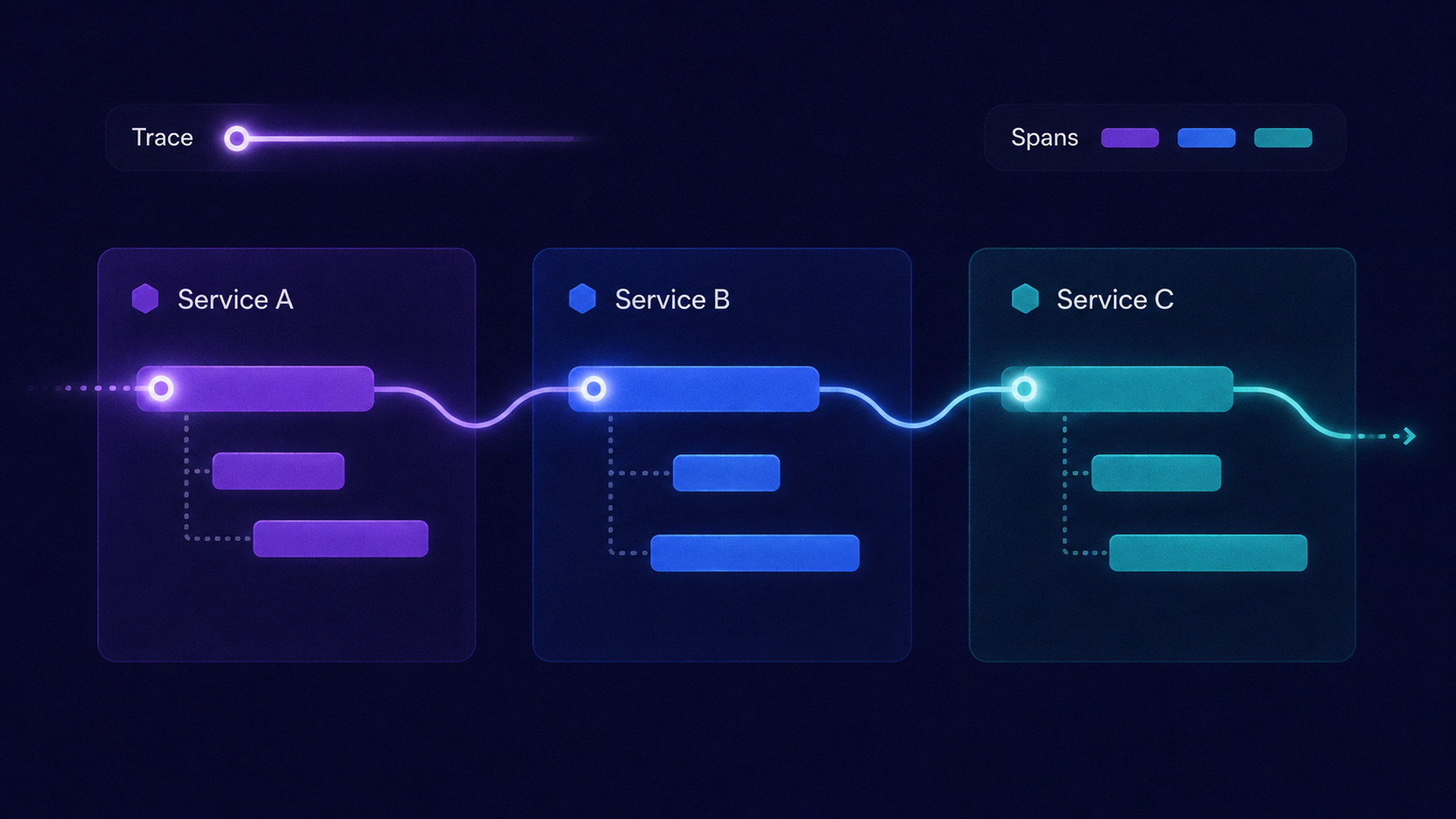

AppSignal builds distributed traces on OpenTelemetry. The part that makes this possible is context propagation. When an instrumented service calls another service, OpenTelemetry attaches the trace identifier and the calling span to the outgoing call. It travels as headers on an HTTP request, or as metadata on a queued job, and the receiving service reads it and continues the same trace. Each service reports the portion of the trace it handled, called its subtrace. AppSignal receives these subtraces independently, often from different processes or hosts, and reassembles them into one trace using the shared trace identifier and the parent and child links between spans. You do not connect services together in AppSignal by hand. If a library is instrumented, its calls join the trace automatically. AppSignal samples traces rather than keeping every one, and it makes that decision across services: when a trace is kept, the work from every service in it is kept too, so the trace arrives whole instead of as scattered fragments. Sampling favors the traces you most want to see, the ones with errors and the slowest requests. Gaps can still appear at the edges, when a service does not report or its data arrives too late. After traces start arriving, open the trace page to inspect them in two ways: the service map, which shows the services in the trace and the calls between them, and the trace timeline, which lays every span out over time. The trace page covers how to read both.

​

Cross-application support

A service in AppSignal is not the same thing as an application. Several services can report to one AppSignal application, and a single trace can also cross services that belong to entirely separate applications. For example, a web app, an inventory service, and an audit service might all report to one AppSignal application, each under its own service name, while a separate service reports as its own application. A single user action, such as a checkout, can produce a trace that includes services from both applications. AppSignal’s service map treats this as one trace regardless of where each subtrace was reported. It resolves the application that owns each service and links each one to that application’s view of the same trace. To follow a request across an application boundary, select the next service on the map. You move from one application to the next along the same trace. This works because context propagates across process and application boundaries the same way it does between services, and AppSignal matches subtraces by their shared trace identifier, not by which application or host they came from. Once each service reports through a hosted collector with its own service name, you can follow one request across services and applications from a single trace.

​
